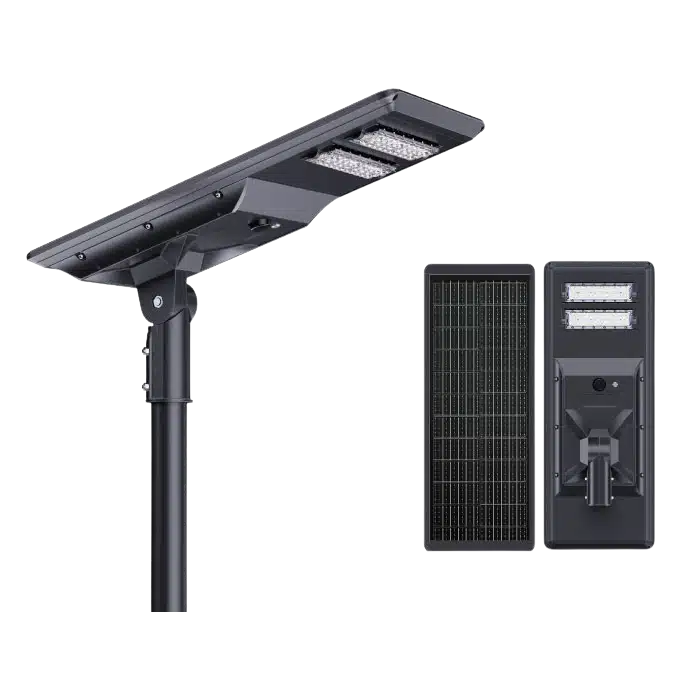

The ZAIN Series Solar Street Light is an engineering-grade solution built for professional outdoor projects, suitable for 5m to 12m pole heights. Designed with a robust die-cast aluminium housing and premium components, it delivers long-term durability in demanding environments. The lithium battery uses high-temperature 32700 cells with 2000+ cycle life, while discharge is controlled to protect battery health and extend lifespan.

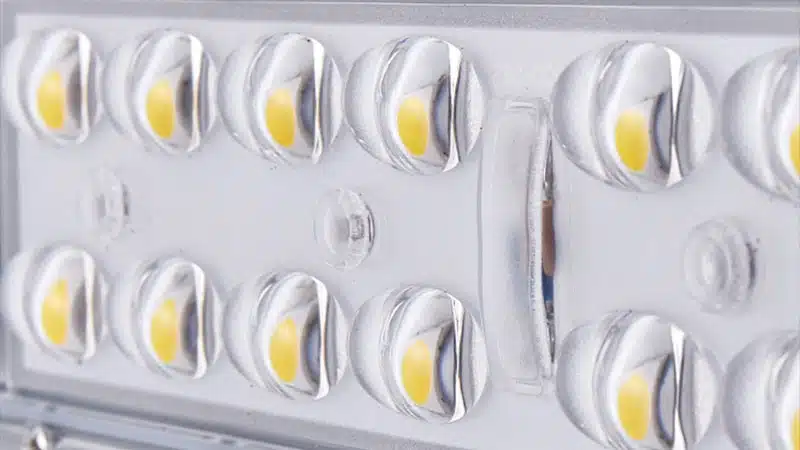

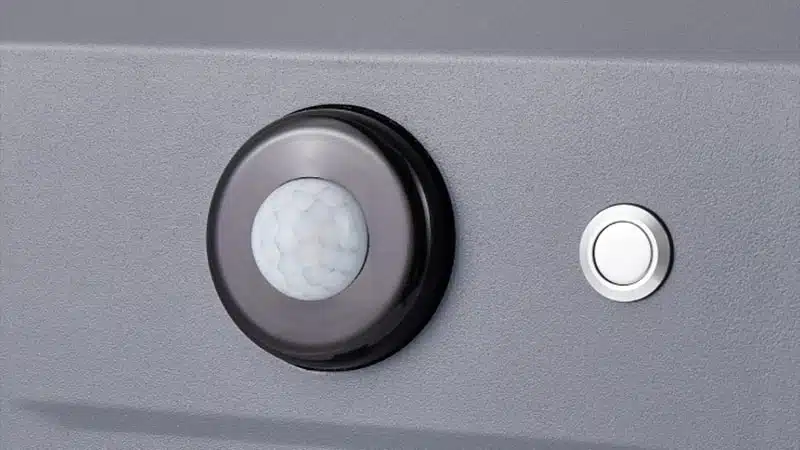

For powerful illumination, ZAIN features ultra-bright SMD5050 LEDs with efficiency up to 170 lm/W. Its ULTRA SLIM lens design improves light utilisation to over 93%, reducing waste and delivering uniform road coverage. With a high-efficiency MPPT controller and intelligent sensor control, it provides stable, energy-saving performance. Ideal for parks, residential areas, walkways, and main roads where quality matters.
Key Components & Advantages
MPPT Charge Controller
MPPT charging improves efficiency, extends battery life and supports stable all-night lighting.
LiFePO4 Battery
Grade A+ cells deliver stable charging, consistent output and long-lasting performance.
High Brightness LED
High-output LEDs improve visibility and safety with efficient, consistent lighting.
Programmable by Remote
Remote control adjusts brightness, modes and operating time to suit your needs.
Robust Design
Heavy-duty body for durability, stable structure and improved heat dissipation.
Adjustable LED Module
Adjustable LED angle improves road coverage, boosting efficiency and reducing light waste.
Main Specifications
| Model Name | AIO-60WZ |
| LED Power | 60W |
| Luminous Flux | 10,200lm |
| CCT | 2200K~6500K |
| LED module | SMD5050 32pcs |
| LiFePO4 Battery | 12.8V 460WH |
| Solar Panel | 18V 82W |
| Product size | 1100*420*350mm |
| Charge controller | MPPT |
| Pole size | 76mm |
| Installation height | 5 ~ 8m |
| Warranty | 5 Years |
Downloads
Datasheet of AIO-60WZ
User Manual of AIO-60WZ
