SolarWrap Vertical Solar Cylinder
High Efficiency | Detachable Design | Linkable
| Model Number | S80 | S100 |
|---|---|---|
| P.max | 80W | 100W |
| Dimension | D160*1080mm | D190*1080mm |
| Max Pole Size | 90mm | 130mm |
| Warranty | 5 Years | ● |
S80
S100

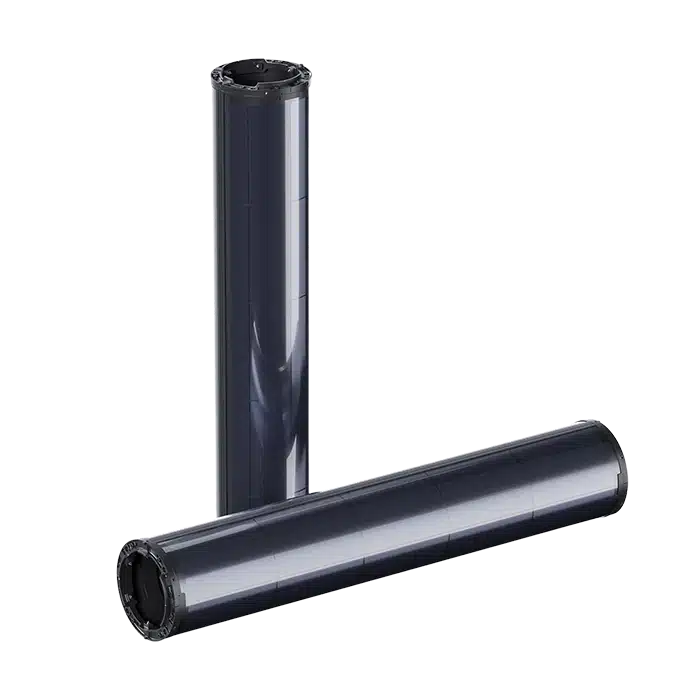

The SolarWrap Vertical Solar Cylinder is a premium pole-mounted solar solution built with SUNPOWER cells (USA-made) for exceptional power generation efficiency. Its flexible cell structure helps prevent cracking and delivers up to 10% better performance in low-light conditions compared to standard monocrystalline panels. Protected by tempered glass, SolarWrap resists wind, sand, UV exposure and dust build-up for reliable outdoor performance. Designed for long-term use, it offers an expected service life of 20+ years with minimal maintenance.
With a modular design, SolarWrap installs easily and adapts to multiple pole shapes, including round, hexagonal, octagonal and conical poles within diameter limits. Multiple units can be mounted on a single pole to increase total power output. It is also ideal for retrofitting existing poles, upgrading traditional street lights into modern solar-powered systems. Available in three model options to suit different project requirements.
Key Components & Advantages

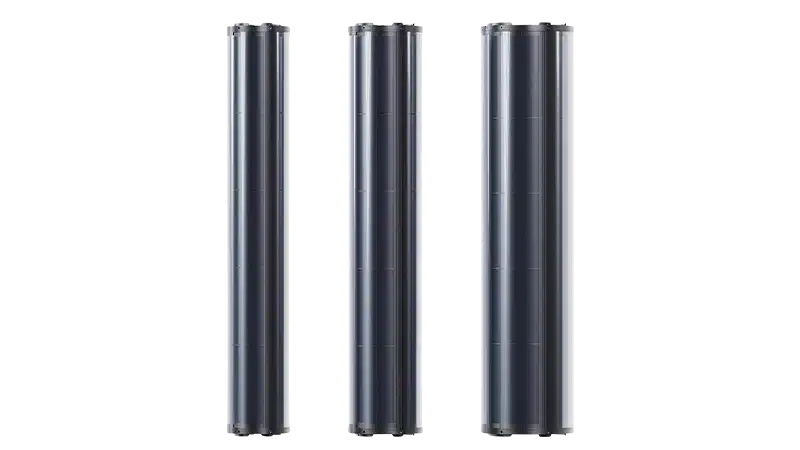

Fit to Different Size
Fits different pole sizes and shapes for flexible mounting and easy project adaptation.
Snow Free in Winter
Vertical panels avoid snow build-up, helping maintain charging performance in winter.
Patented Design
Original patented structure developed with proven expertise for reliable long-term use.
360° Charging
Curved layout captures sunlight throughout the day for more consistent charging output.
Dust & Sand Free
Vertical mounting reduces dust build-up, lowering cleaning needs and maintenance effort.

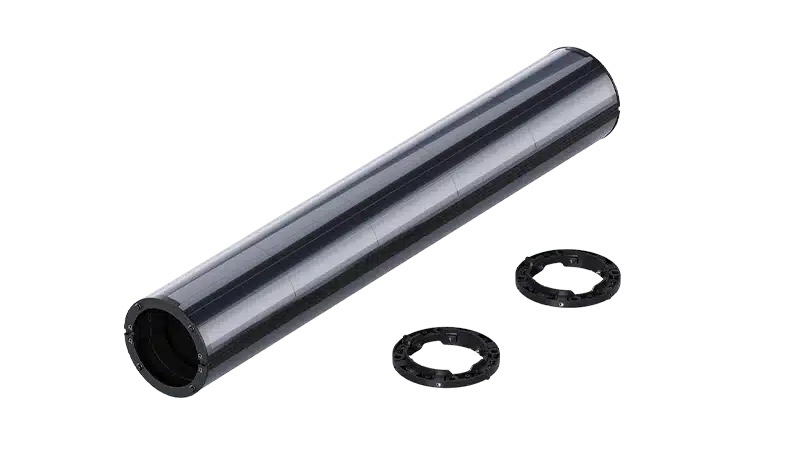

Modular Installation
Sliding modular design enables faster installation with simple, secure connections.
No Risk from Hailstone
Protected structure reduces impact risk compared to exposed glass-top solar panels.
Strong Wind Resistance
Smaller wind-facing area improves stability and supports strong wind conditions.
Aesthetics Appearance
Modern vertical design blends neatly into landscapes with a clean, premium look.
Main Specifications
| Model | S80 | S100 |
|---|---|---|
| Pmax | 80W | 100W |
| Vmp | 6V | 9V | 6V | 9V |
| Imp | 13.3A | 8.9A | 16.6A | 11.1A |
| Dimension | D160*1040mm | D190*1040mm |
| Cell Type | SUNPOWER | ● |
| Cell efficiency | >22.5% | ● |
| Material | Tempered Glass | ● |
| Max Pole Dia | 90mm max | 130mm max |
| Net Weight | 7.50kg | 9.50kg |
| Cable & Connector | 2.5mm with MC4 plugs | ● |
| Life Time | >20 years | ● |
| Operating Temp. | -20℃ ~ +70℃ | ● |
| Warranty | 5 Years | ● |
| Certificates | CE, ROHS, IEC | ● |
S80
S100
