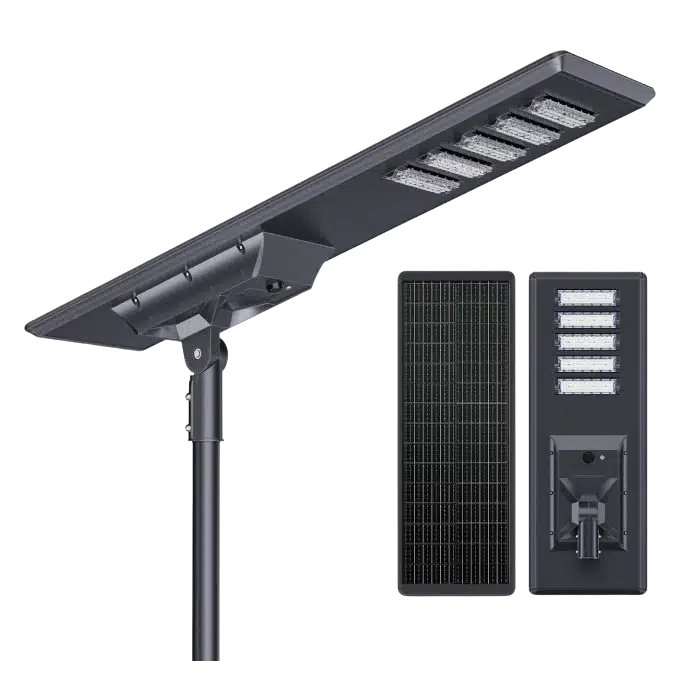

140W Intelligent Control Solar Luminaires
Adjustable LED Module | 170lm/W | CB Approved
The 140W Intelligent Control Solar Luminaire (ZAIN Series) is an engineering-grade solar street light designed for demanding projects and 5m to 12m pole heights. Built with a rugged die-cast aluminium housing and premium components, it delivers excellent durability and long-term outdoor performance. It uses a high-performance battery with high-temperature 32700 cells and 2000+ cycle life, while controlled discharge helps extend battery lifespan.

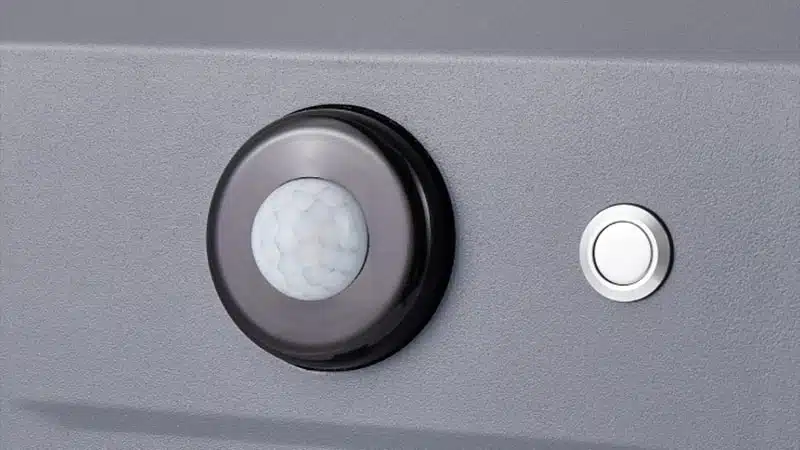

Equipped with ultra-bright SMD5050 LEDs, it achieves up to 170 lm/W for powerful, efficient illumination. The ULTRA SLIM lens design boosts light utilisation to over 93%, improving road uniformity and reducing wasted spill. A high-efficiency MPPT controller combined with intelligent sensor control optimises charging and energy saving. Ideal for parks, residential areas, pathways and main roads where quality and stability are essential.
Key Components & Advantages
MPPT Charge Controller
MPPT charging improves efficiency, extends battery life and supports stable all-night lighting.
LiFePO4 Battery
Grade A+ cells deliver stable charging, consistent output and long-lasting performance.

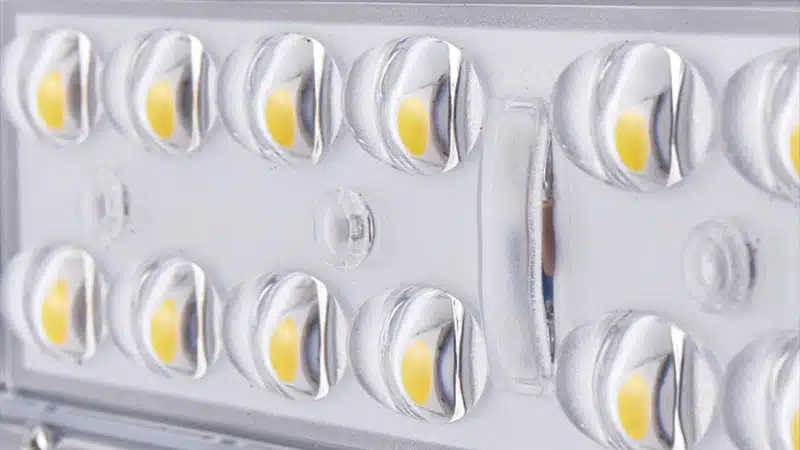

High Brightness LED
High-output LEDs improve visibility and safety with efficient, consistent lighting.
Programmable by Remote
Remote control adjusts brightness, modes and operating time to suit your needs.
Robust Design
Heavy-duty body for durability, stable structure and improved heat dissipation.
Adjustable LED Module
Adjustable LED angle improves road coverage, boosting efficiency and reducing light waste.
Main Specifications
| Model Name | AIO-140WZ |
| LED Power | 140W |
| Luminous Flux | 23,800lm |
| CCT range | 2200K~6500K |
| LED module | SMD5050 80pcs |
| LiFePO4 Battery | 25.6V 1075WH |
| Solar Panel | 36V 158W |
| Product size | 1480*530*380mm |
| Charge controller | MPPT |
| Pole size | 76mm |
| Installation height | 8 ~ 14m |
| Warranty | 5 Years |
