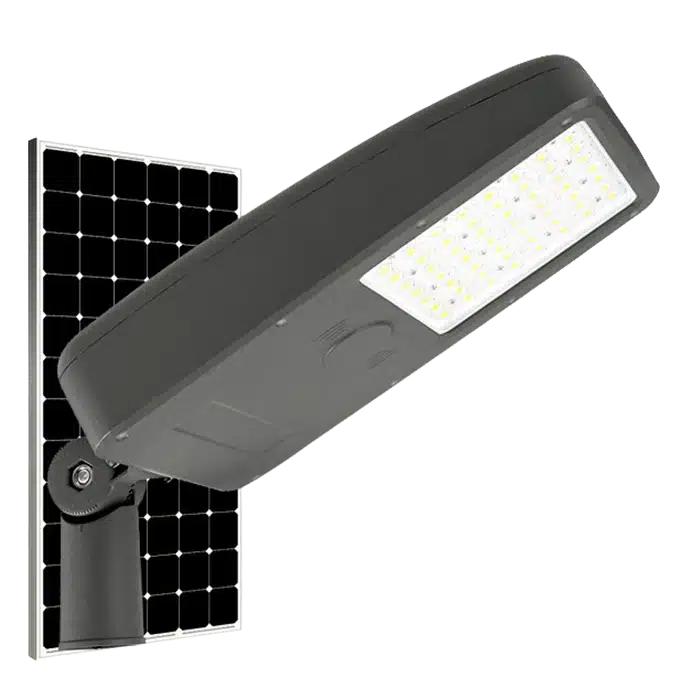

HERMES 60W & 80W Solar Street Light
LEDil Optics | 170lm/W | MPPT Controller
| Model Number | HERMES T6 | HERMES T8 |
|---|---|---|
| Peak LED Power | 60W | 80W |
| Luminous Flux | 10200lm | 13600lm |
| Battery Capacity | 538WH 12.8V | 768WH 12.8V |
| Solar Panel Min | 120W 18V | 180W 18V |
HERMES T6
HERMES T8
The HERMES 60W & 80W Solar Street Light is designed for main road projects that demand continuous, ultra-high brightness and reliable performance. It features a large-capacity LiFePO4 battery pack (up to 768Wh max), delivering long autonomy and supporting a service life of 10+ years in energy-saving mode. Powered by 64pcs SMD5050 (5W/LED) and driven with constant voltage at lower current, HERMES achieves superb efficiency of up to 180 lm/W.
Ideal for 6m to 10m poles, it is engineered for high-end installations requiring precise lighting distribution. Premium LEDil optics offer multiple beam patterns to suit different road widths, pole heights and spacing layouts. The luminaire connects easily to solar panels using universal MC4 connectors, allowing flexible panel selection based on local solar conditions.
Key Components & Advantages
High Efficiency Solar Cell
Up to 22.5% efficiency supports faster charging and reliable daily performance.
Quality LiFePO4 Battery
Grade A+ cells deliver stable charging, consistent output and long-lasting performance.
MPPT Charge Controller
MPPT charging improves efficiency, extends battery life and supports stable all-night lighting.

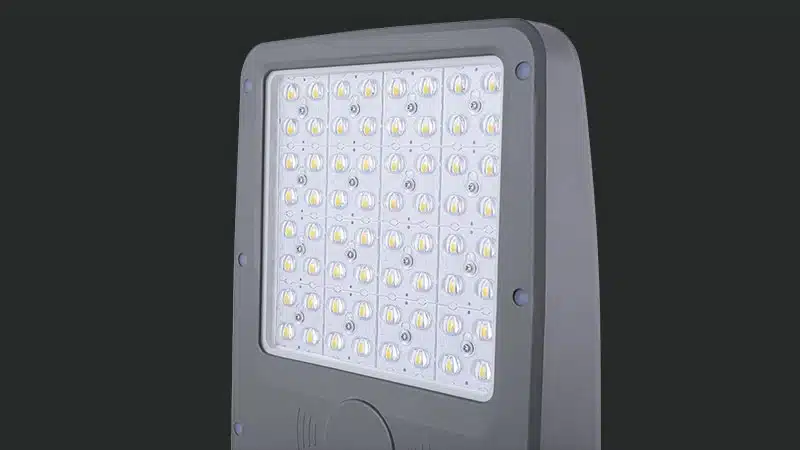

High Brightness LED
High-output LEDs improve visibility and safety with efficient, consistent lighting.
Microwave Sensor
Motion sensing saves battery power, extending runtime and autonomy in low sunshine.
Robust Design
Heavy-duty body for durability, stable structure and improved heat dissipation.
Main Specifications
| Model Name | HERMES T6 | HERMES T8 |
|---|---|---|
| Peak LED Power | 60W | 80W |
| Luminous Flux | 10200lm | 13600lm |
| LED Chips | SMD5050 5W | ● |
| CRI | >79 | ● |
| CCT Range | 2700K~6500K | ● |
| Beam Angle | Type I/II/III/III optional | ● |
| Battery Cell | LiFePO4 32700 6000mAH | ● |
| Battery Capacity | 538WH 12.8V | 768WH 12.8V |
| Charge Controller | Programmable MPPT | ● |
| Solar Panel | 120W 18V | 160W 18V |
| Cable & Connector | 2.5MM2 Cable with MC4 | ● |
| Control Method | Automatically ON/OFF dusk to dawn | ● |
| Motion Sensor | Microwave / PIR Infrared | ● |
| Fixture Size | 675*277*109mm | ● |
| Installation Size | 60mm | ● |
| Fixture Colour | Grey / Customised | ● |
| Certificates | CE RoHS CB IECEE LM80 LM79 etc | ● |
| Warranty | 5 Years | ● |
HERMES T6
HERMES T8
